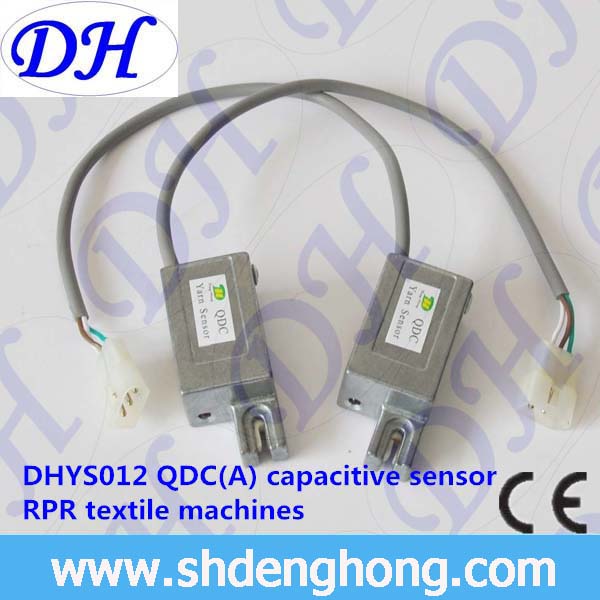

DHYS012 QDC(A) yarn sensor

1) NPN Output
2) Working Voltage DC (18-30)V
3) Working current MAX. 1.2A
4) Static state current < 20mA
5) Response time < 1 second


Product features

  • Power supply: 18-30 VDC
  • Maximum output current: 1.2A
  • Visual alarm (red LED)
  • Reaction time: < 1 second
  • Various plugs meet different requirement

Detailed description

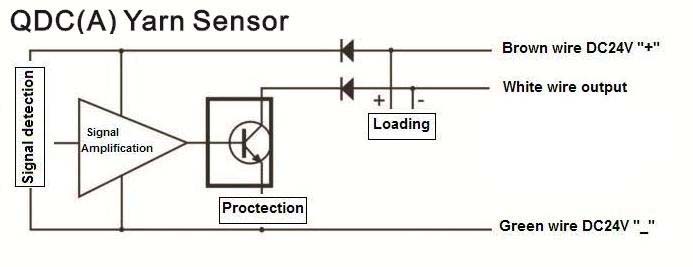

Circuit connection:

Capacitive Yarn sensors are able to be used in Winding, doubling, texturing or Elasticizers and so on.



Main Function



Capacitive yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will inform the user via a flashing LED that a position is defective.



Working Principle



Capacitive yarn sensor probe will check tension variations produced by electrical charges of a moving yarn.
